Description
This Eibach lift application is built specifically for 2024-2026 INEOS GRENADIER, making it a more integrated choice when factory rake, accessory weight, or ground clearance is part of the reason for the upgrade.

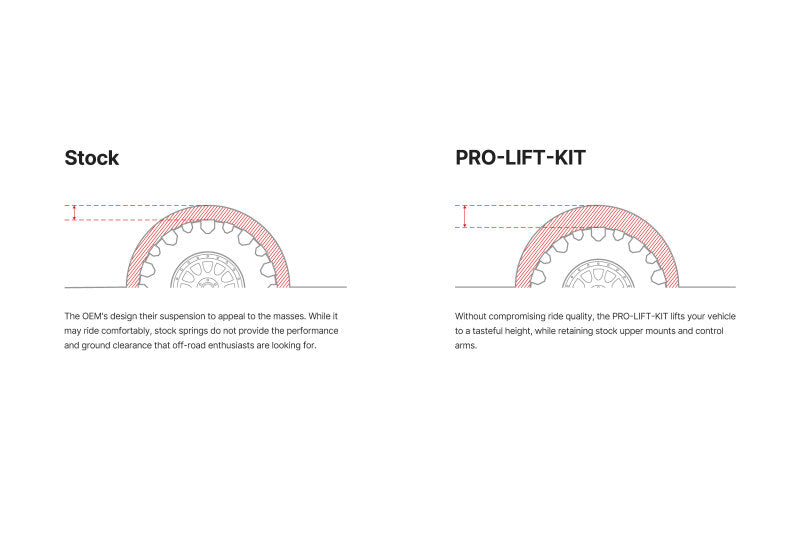

The benefit is added clearance with spring behavior matched to the application, rather than spacing the chassis upward without changing the spring calibration.
Application focus: This page is tied to engine/application 3.0L 6 Cyl. Turbo; drivetrain 4WD; trim/submodel QUARTERMASTER. Those details matter because Eibach may assign different components within the same model generation.
What makes this application specific: Eibach identifies front specification +2.5" and rear specification +2.4"-1.4" for this listing. It should not be assumed interchangeable with another year, trim, or chassis that uses the same product family.
Why This Eibach Setup Makes Sense

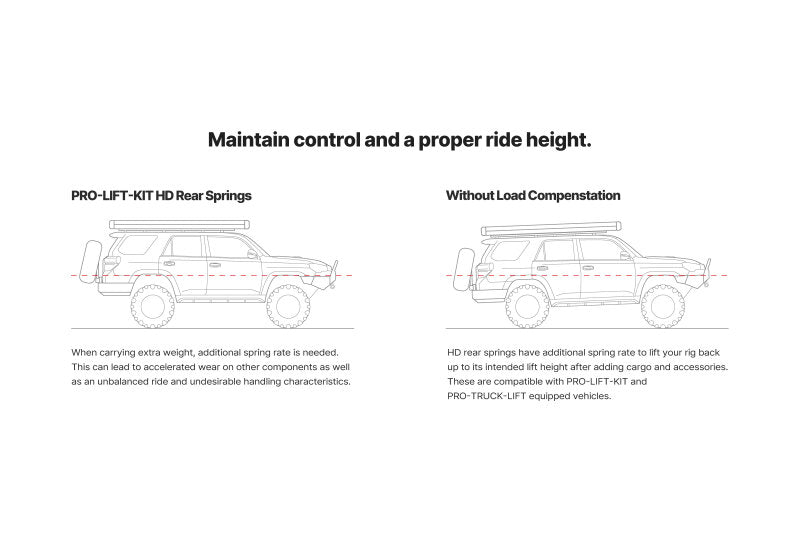

- HD (Heavy-Duty) Spring Kit Designed for Control of Increased Payloads.
- Engineered for Optimal Rear Lift Range with Increased Static Weight (See Notes).
- Developed for use in Conjunction with Eibach Shocks.
- Precision Engineered for Improved Off-Road Capability.
- Made in U.S.A.
Choosing the Correct Variant
Where multiple configurations are offered, select the axle, load, or kit version that matches the vehicle as it is equipped rather than choosing by advertised lift alone.
- Configuration: HD Rear Springs, Front Springs, HD Front Springs, Kit
- Lift Height: +2.4"-1.4" Rear, +2.5" Front, +3"-2.3" Front, +1.2" Front / +0" Rear, +2.8"-1.4" Rear
Product Details
- Front: +2.5" / +3"-2.3" / +1.2"
- Rear: +2.4"-1.4" / +0" / +2.8"-1.4"

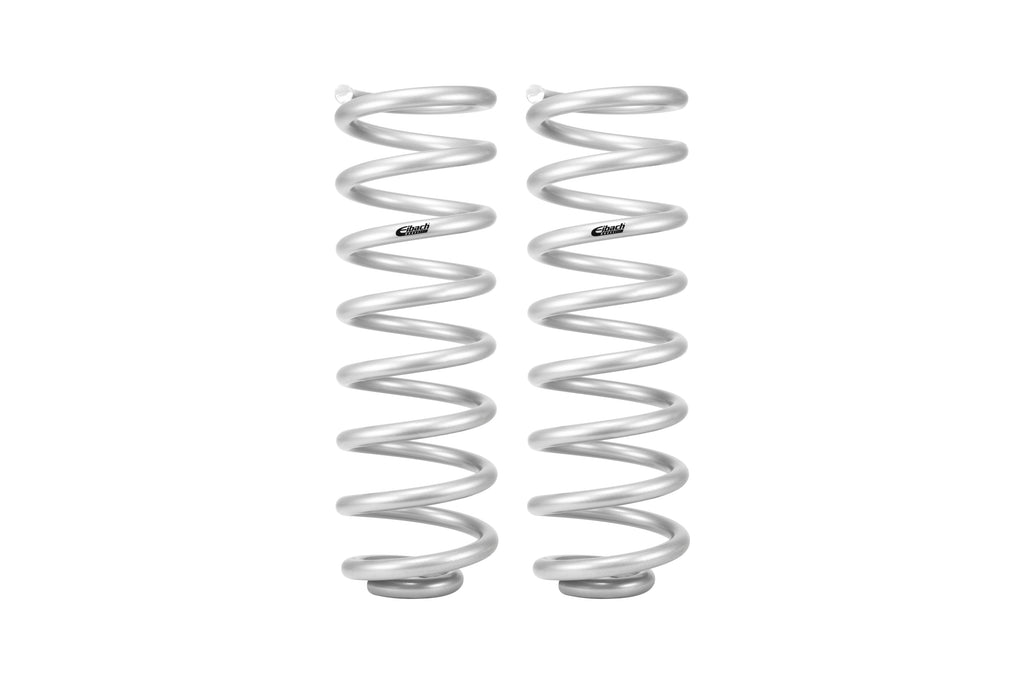

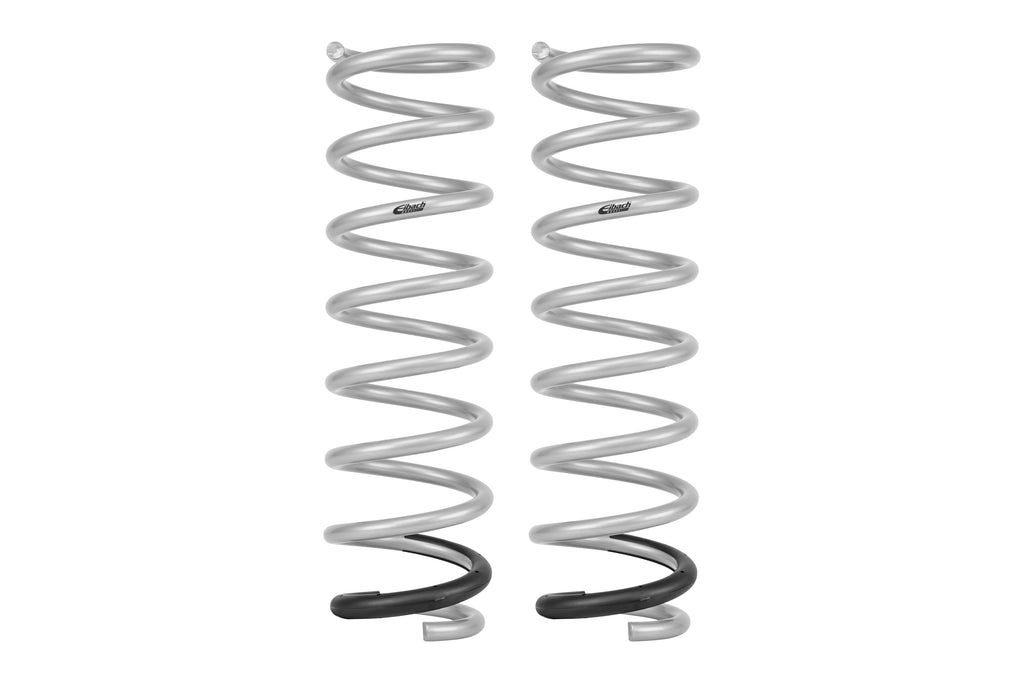

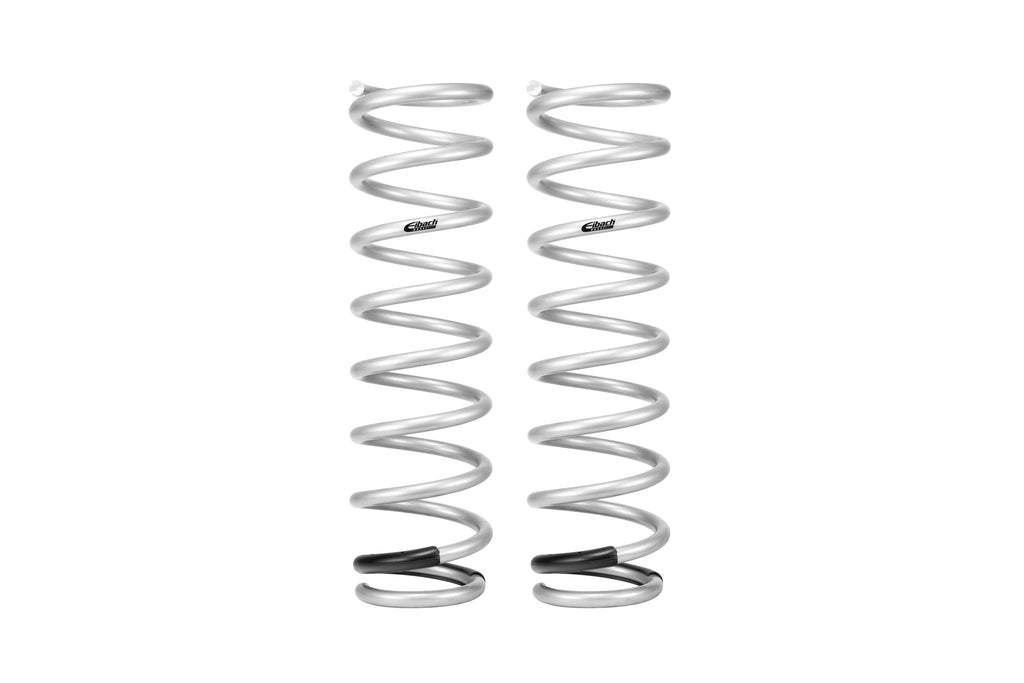

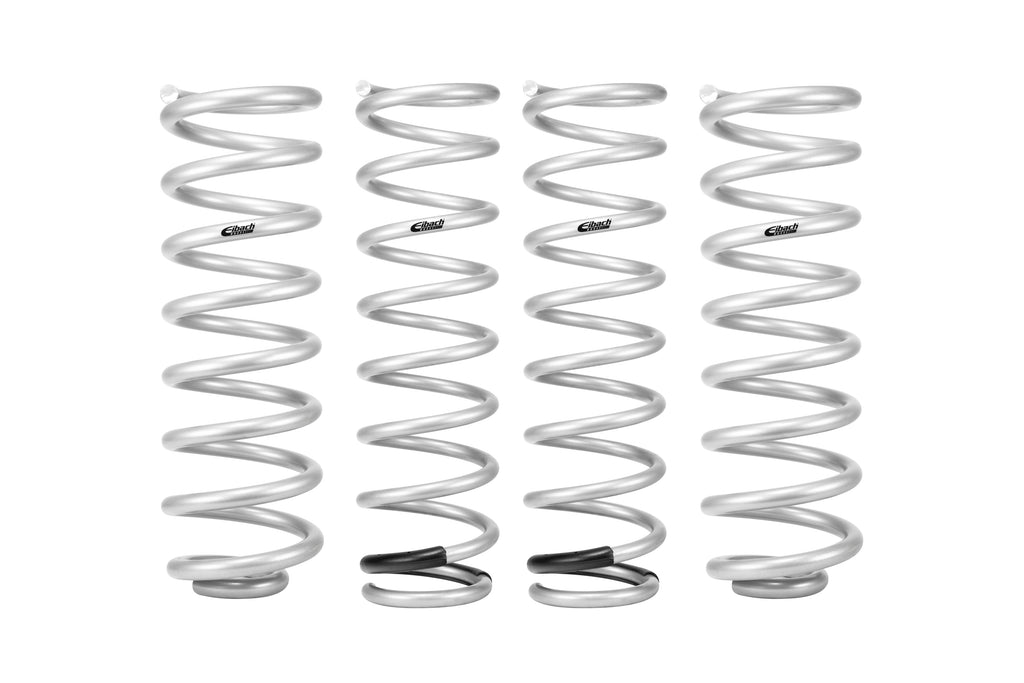

- Eibach package: Pair of 2 Springs / Set of 2 Springs / Set of 4 Springs
- Product family: HD PRO-LIFT KIT / PRO-LIFT KIT
- Eibach part numbers: E30-34-001-06-02, E30-34-001-06-20, E30-34-001-11-20, E30-34-001-13-22, E30-34-001-14-02
What This Listing Represents
Pair of 2 Springs / Set of 2 Springs / Set of 4 Springs. The selected Eibach part number determines the exact component or kit supplied.
Fitment Notes
- Listed rear lift heights range from 0lbs(1st height listed) to 500lbs(2nd height listed). Only recommended to run at fully load height, other heights listed for reference only. Too much lift will cause poor ride quality.
- Rear Springs only
- Front Spring Only
- Recommended to pair with Eibach Pro-Truck Reservoir Shocks.
- Listed front lift heights range from 0lbs(1st height listed) to 250lbs(2nd height listed). Only recommended to run at heights of 150-250lbs, other heights listed for reference only. Too much lift will cause poor ride quality.
- Tested with factory dampers.
Installation & Setup Considerations
After the vehicle settles, verify final ride height and alignment and make sure the shocks, control arms, CVs, brake lines, and tires retain adequate travel and clearance.
Fitment data is application-specific. Confirm the selected Eibach part number against the exact vehicle configuration before ordering.
