Description

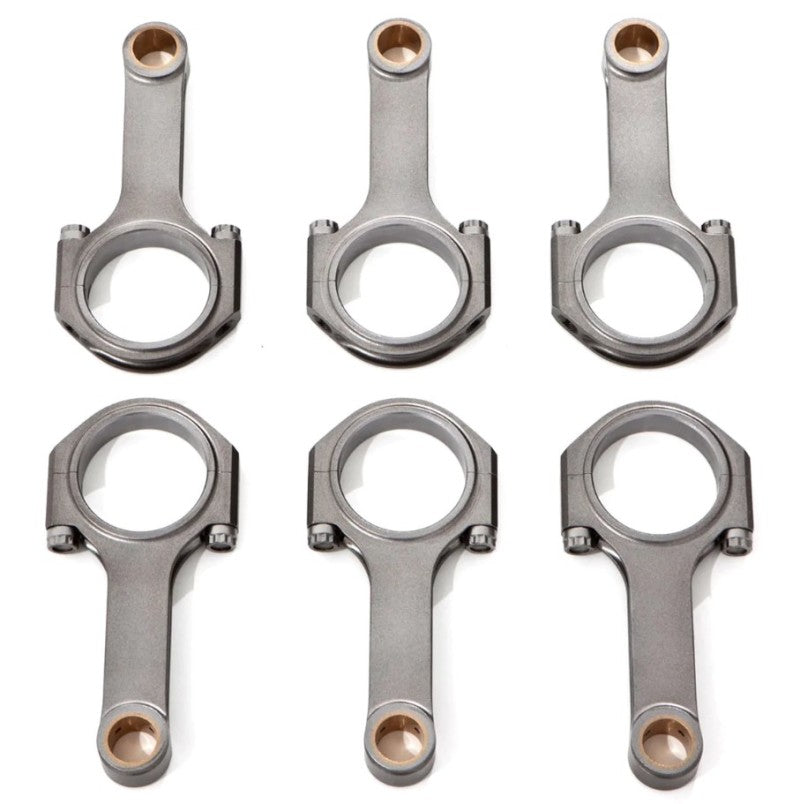

This connecting rod configuration is listed for 2010 Porsche Cayman S 987.2 3.4L 9A1 under SKU CRLSCR8945-6. Supplied as a set of 6, it is the CARR Bolt version shown in this listing.
For a Porsche build, verify the engine generation and turbo or non-turbo specification, then compare pin size, rod length, and big-end width. A chassis number or displacement alone may not identify the correct internal engine configuration.
Select this rod by its exact geometry, fasteners, and package contents. Rod length and end dimensions determine how it works with the crankshaft and pistons; a matching engine label does not eliminate the need to verify those interfaces.
The listed CARR fasteners belong to Carrillo's Multiphase bolt family. Identify the actual bolt markings and follow the corresponding installation specification; bolt diameter alone does not define the correct preload procedure.
Product Specifications
- Listed application: 2010 Porsche Cayman S 987.2 3.4L 9A1
- Listed configuration: CARR Bolt
- Package quantity: Set of 6 connecting rods
- SKU: CRLSCR8945-6
- Manufacturer catalog rod center distance: 140 mm
- Manufacturer catalog pin diameter: 22 mm
Fitment and Assembly
Check bearing fit, rod side clearance, and clearance to the block, crankshaft, and pistons during mock-up. Use the supplied specification card and the exact bolt installation instructions for final assembly.
