Description

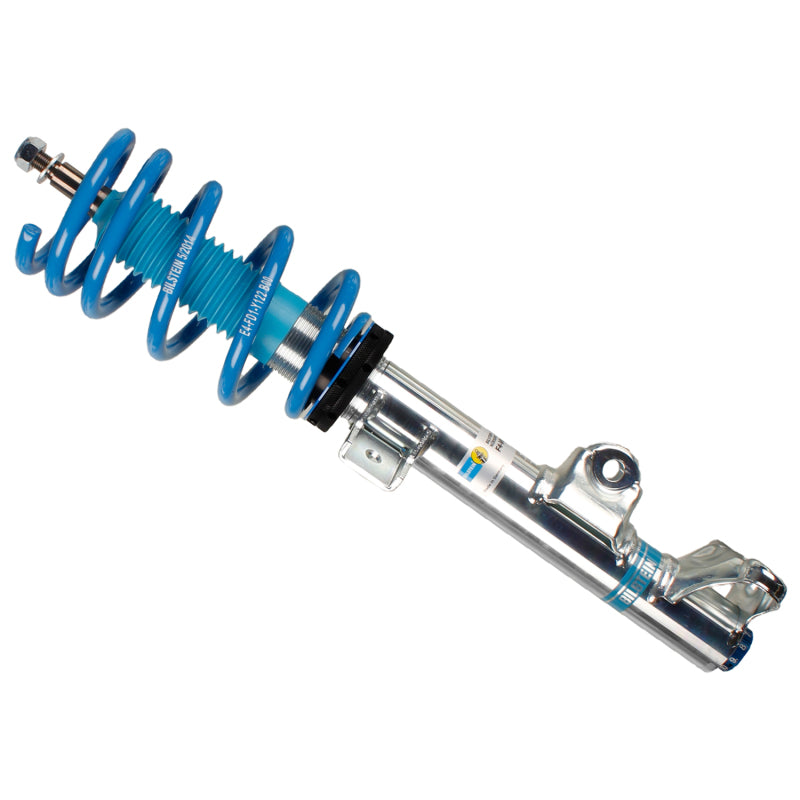

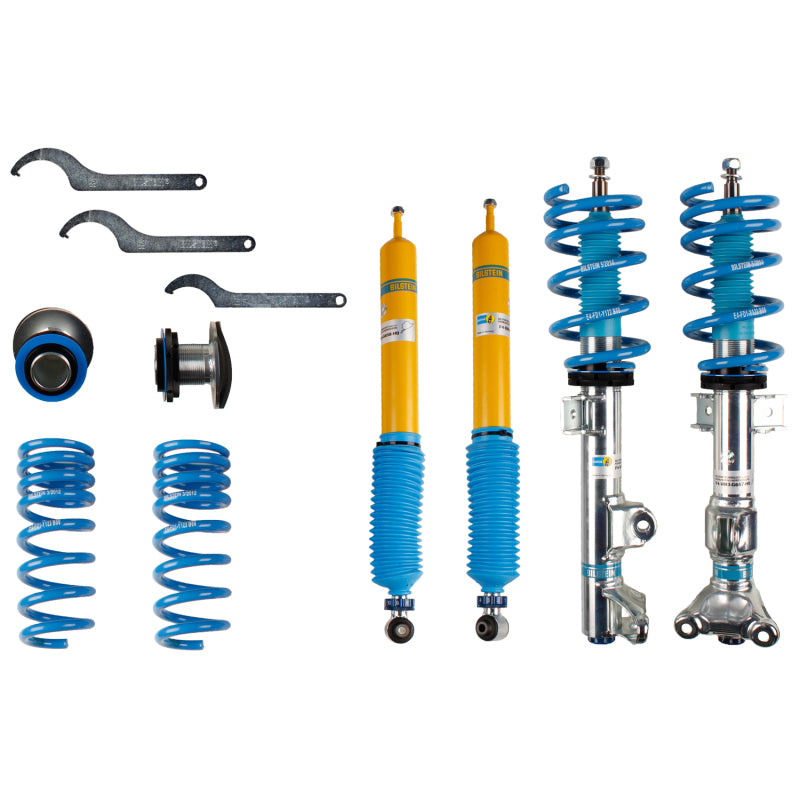

Bilstein B16 PSS10 Coilover Kit – 2014–2016 Mercedes-Benz E250 is an application-specific Bilstein suspension solution for Mercedes-Benz E250 2014-2016, E350 2010-2016, E400 2015-2016, E550 2010-2011. For this road-focused application, the priority is controlled body motion and a composed ride without introducing unnecessary suspension changes. The exact Bilstein configuration should be matched to the vehicle's factory suspension equipment, especially where adaptive or air suspension is involved.
Why Bilstein B16 (PSS10) for This Application?
B16 is intended for drivers who want more setup authority than a fixed-damping coilover. In addition to ride-height adjustment, the system provides user-adjustable damping so the chassis can be biased toward street compliance or a firmer performance setting. For the Mercedes-Benz application shown here, Bilstein assigns this product to Front and Rear, so the part should be chosen by both chassis fitment and suspension position.
Application-Specific Product Details
- Bilstein Series: B16 (PSS10)
- Product Type:
- Application: Mercedes-Benz E250 2014-2016, E350 2010-2016, E400 2015-2016, E550 2010-2011
- Position: Front and Rear
- Listed Shipping Weight: 64.93 lb
- Country of Origin: DE
Choosing the Right Bilstein Setup
For this road-focused application, the priority is controlled body motion and a composed ride without introducing unnecessary suspension changes. The exact Bilstein configuration should be matched to the vehicle's factory suspension equipment, especially where adaptive or air suspension is involved. If the vehicle has been lowered, lifted, converted from factory electronic suspension, or carries substantial added weight, verify that this exact Bilstein series and part number matches that configuration before purchase.
Bilstein Application Notes
- Front Lowered Height: 30-55mm; Rear Lowered Height: 30-50mm; Without Air Suspension
Part Numbers & Configurations
| Position / Configuration | Bilstein MPN | Listed Package Dimensions |
|---|---|---|
| Front and Rear | 48-166560 | L: 30.3 in; W: 11 in; H: 8.25 in |
Each selectable variant corresponds to the Bilstein part number shown above. Order the quantity required for the positions being serviced.
