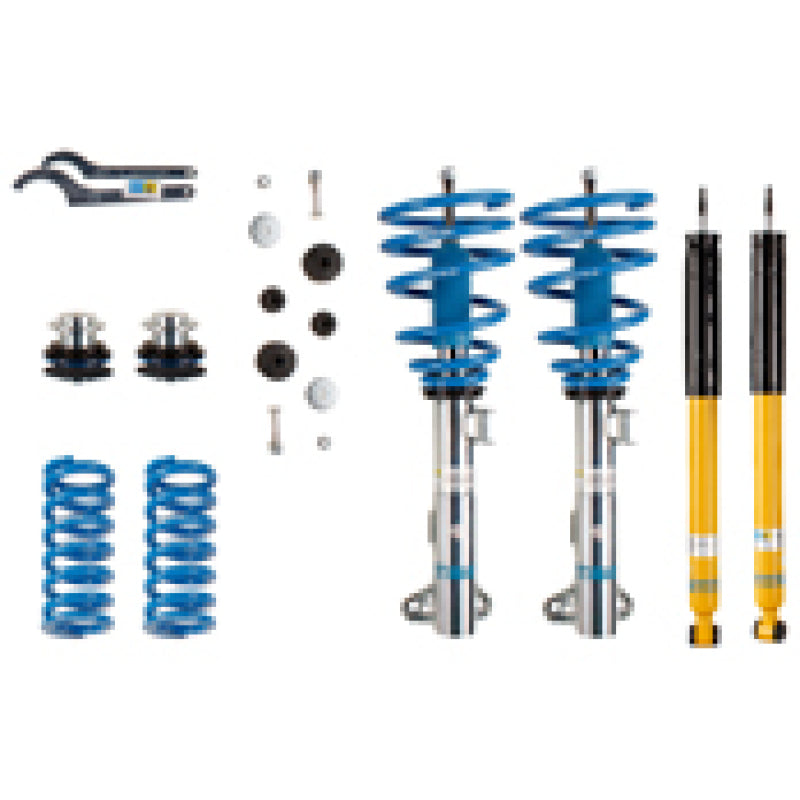

Bilstein B14 PSS Coilover Kit – 2002–2004 Mercedes-Benz C32 AMG

Bilstein B14 PSS Coilover Kit – 2002–2004 Mercedes-Benz C32 AMG is an application-specific Bilstein suspension solution for Mercedes-Benz C32 AMG 2002-2004, C55 AMG 2005-2006, C230 2002-2007, C240 2001-2005, C280 2006-2007, C320 2001-2005, C350 2006-2007, CLK55 AMG 2003-2006, CLK63 AMG 2007-2008, CLK320 2003-2005, CLK350 2006-2009, CLK500 2003-2006, CLK550 2007-2009. For this road-focused application, the priority is controlled body motion and a composed ride without introducing unnecessary suspension changes. The exact Bilstein configuration should be matched to the vehicle's factory suspension equipment, especially where adaptive or air suspension is involved.

Why Bilstein B14 (PSS) for This Application?

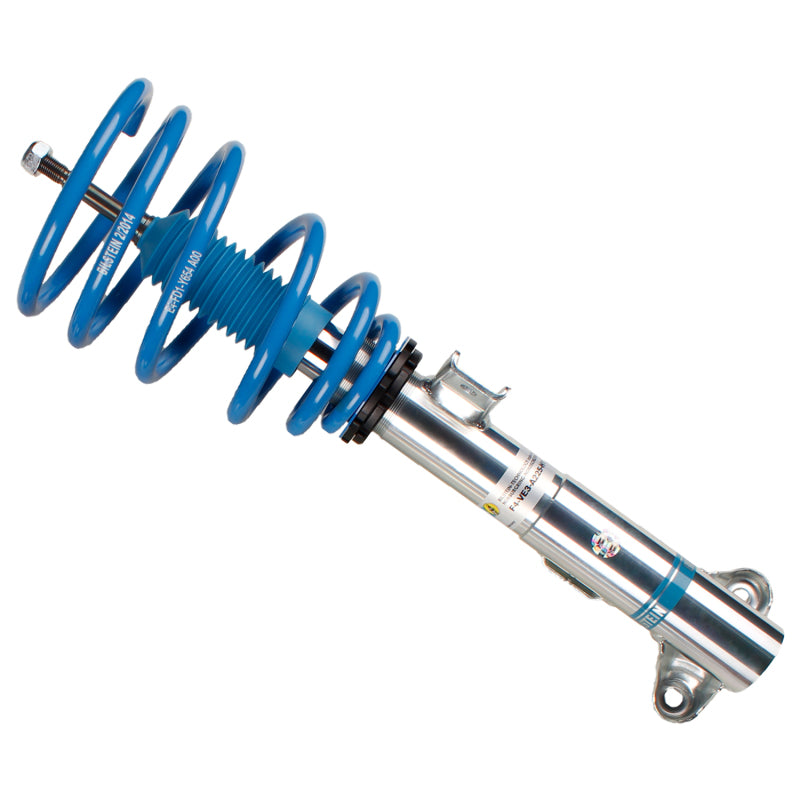

B14 PSS is Bilstein's height-adjustable coilover solution for drivers who want an integrated spring-and-damper package with adjustable ride height, but do not require user-adjustable damping. For the Mercedes-Benz application shown here, Bilstein assigns this product to Front and Rear, so the part should be chosen by both chassis fitment and suspension position.

Application-Specific Product Details

• Bilstein Series: B14 (PSS)
• Product Type:
• Application: Mercedes-Benz C32 AMG 2002-2004, C55 AMG 2005-2006, C230 2002-2007, C240 2001-2005, C280 2006-2007, C320 2001-2005, C350 2006-2007, CLK55 AMG 2003-2006, CLK63 AMG 2007-2008, CLK320 2003-2005, CLK350 2006-2009, CLK500 2003-2006, CLK550 2007-2009
• Position: Front and Rear
• Listed Shipping Weight: 70.37 lb
• Country of Origin: DE

Choosing the Right Bilstein Setup

For this road-focused application, the priority is controlled body motion and a composed ride without introducing unnecessary suspension changes. The exact Bilstein configuration should be matched to the vehicle's factory suspension equipment, especially where adaptive or air suspension is involved. If the vehicle has been lowered, lifted, converted from factory electronic suspension, or carries substantial added weight, verify that this exact Bilstein series and part number matches that configuration before purchase.

Bilstein Application Notes

• Front Lowered Height: 30-50mm, up to 1130kg Axle Load; Rear Lowered Height: 30-50mm, up to 1150kg Axle Load; Without Self-Leveling Suspension; Wheel spacers may be required for some wheel/tire combinations; Sport Suspension

Part Numbers & Configurations

Each selectable variant corresponds to the Bilstein part number shown above. Order the quantity required for the positions being serviced.
