Description

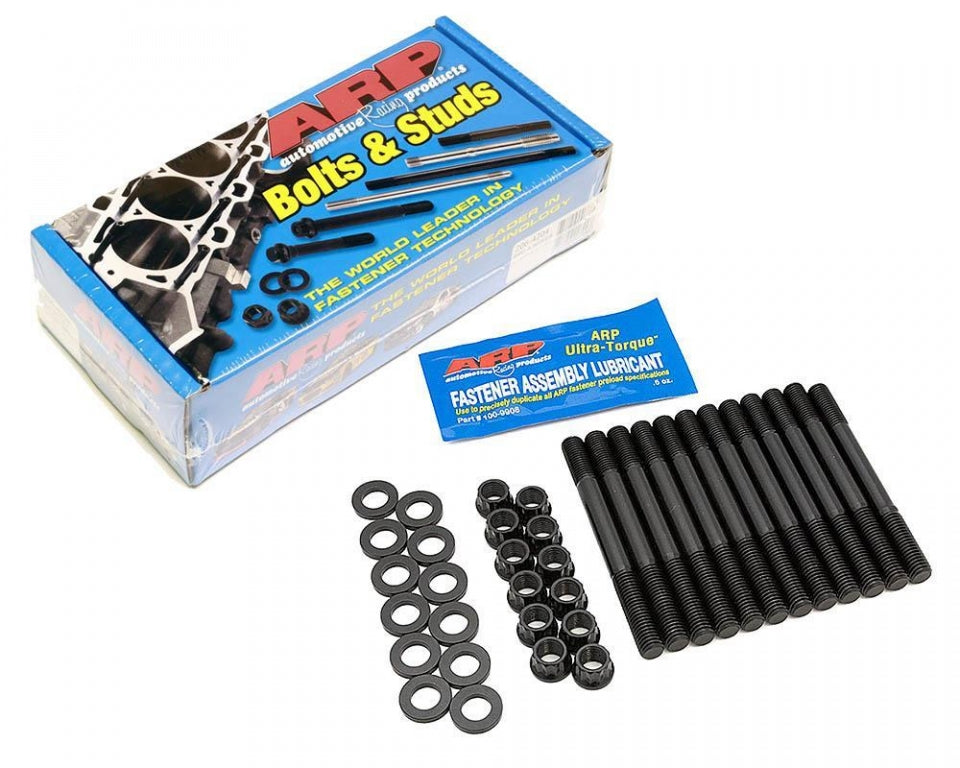

The ARP 203-5407 main stud kit is listed for Toyota 2ZZGE DOHC 1.8L 4-Cylinder. It secures the main bearing caps to the cylinder block, making fastener choice part of the bearing-clearance and machining plan for the engine build.
Technical Highlights
- Manufacturer part number: 203-5407
- Application/configuration: Toyota 2ZZGE DOHC 1.8L 4-Cylinder
Selection Guidance
The specified cap arrangement, block design and windage-tray requirements determine which kit is appropriate. A similar displacement or engine-family name does not establish that different main fastener kits are interchangeable.
Confirm the block, main-cap arrangement and any girdle or windage tray before ordering. Plan these checks before final machining and bearing selection.
Installation Considerations
Have the engine builder check main-bearing bore size and roundness with the intended fasteners installed at the specified preload. Align-hone if required, using the same hardware and lubricant intended for final assembly. Follow the kit-specific instructions for thread preparation, washer placement and tightening.
Vehicle Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005-2011 | Lotus | Elise | Base |
| 2011 | Lotus | Elise | R |
| 2008-2011 | Lotus | Elise | SC |
| 2006 | Lotus | Exige | Base |
| 2007-2009 | Lotus | Exige | S |
| 2008-2010 | Lotus | Exige | S 240 |
| 2003-2006 | Pontiac | Vibe | GT |
| 2000-2005 | Toyota | Celica | GTS |
| 2005-2006 | Toyota | Corolla | XRS |
| 2003-2006 | Toyota | Matrix | XRS |
