Description

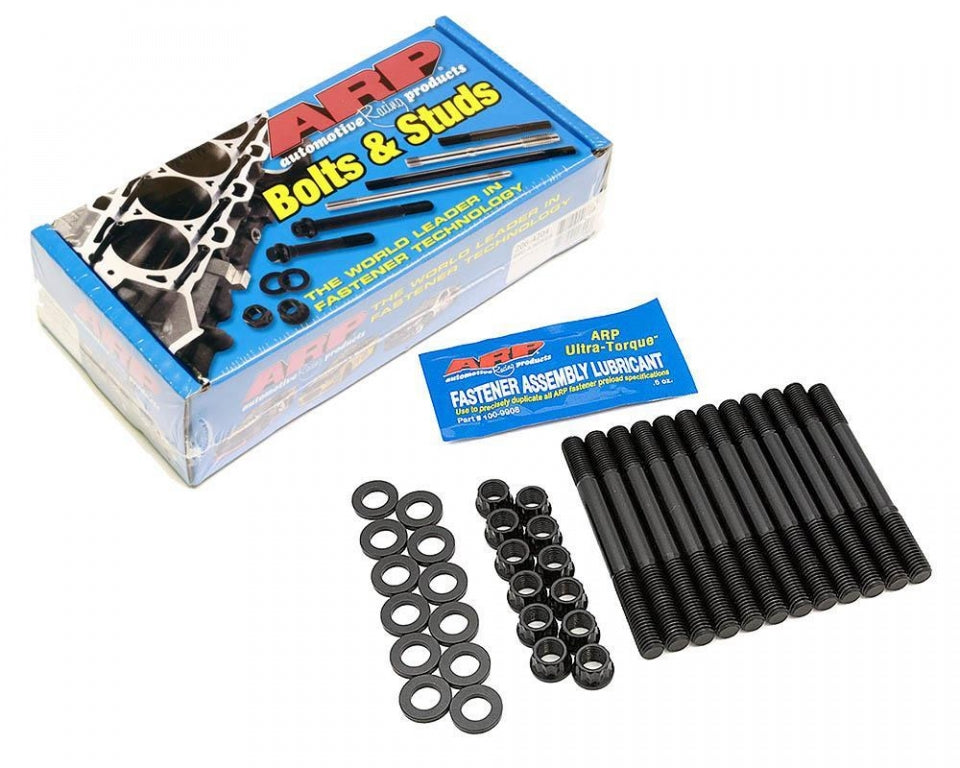

The ARP 203-5401 main stud kit is listed for Toyota 2.4L 2AZFE 4-Cylinder. It secures the main bearing caps to the cylinder block, making fastener choice part of the bearing-clearance and machining plan for the engine build.
Technical Highlights
- Manufacturer part number: 203-5401
- Application/configuration: Toyota 2.4L 2AZFE 4-Cylinder
- Material: ARP2000
ARP2000 is an alloy steel that can be heat treated to a higher strength level than 8740. This material choice does not establish a horsepower limit; fastener selection must also account for the application and required preload.
Selection Guidance
The specified cap arrangement, block design and windage-tray requirements determine which kit is appropriate. A similar displacement or engine-family name does not establish that different main fastener kits are interchangeable.
Confirm the block, main-cap arrangement and any girdle or windage tray before ordering. Plan these checks before final machining and bearing selection.
Installation Considerations
Have the engine builder check main-bearing bore size and roundness with the intended fasteners installed at the specified preload. Align-hone if required, using the same hardware and lubricant intended for final assembly. Follow the kit-specific instructions for thread preparation, washer placement and tightening.
Vehicle Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005-2010 | Scion | tC | Base |
| 2007-2008 | Scion | tC | Spec |
| 2008-2014 | Scion | xB | Base |
| 2005-2006,2009 | Toyota | Camry | Base |
| 2007-2008 | Toyota | Camry | CE |
| 2002-2009 | Toyota | Camry | LE |
| 2002-2009 | Toyota | Camry | SE |
| 2002-2009 | Toyota | Camry | XLE |
| 2009-2010 | Toyota | Corolla | XRS |
| 2001-2007 | Toyota | Highlander | Base |
| 2009-2013 | Toyota | Matrix | S |
| 2009-2010 | Toyota | Matrix | XRS |
| 2004-2008 | Toyota | RAV4 | Base |
| 2005 | Toyota | RAV4 | L |
| 2006-2008 | Toyota | RAV4 | Limited |
| 2005-2008 | Toyota | RAV4 | Sport |
