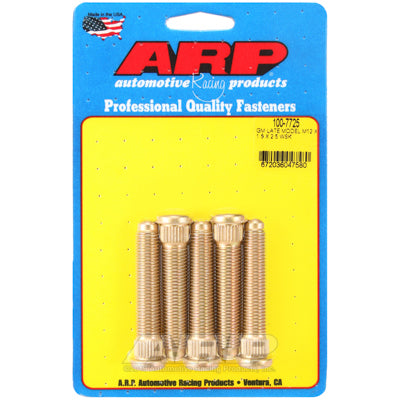

ARP Wheel Stud Kit - Late Model GM | M12 x 1.50 Thread, 2.500 in Under-Head Length, 0.509 in Knurl Diameter, 0.315 in Knurl Length, 0.200 in Nose

ARPSKU: ARP100-7725

Price:
$39.24

Description

The ARP 100-7725 wheel stud kit is listed for Late Model GM. Select wheel studs by their hub fit, thread specification and required engagement with the installed wheel and lug nut.

Technical Highlights

  • Manufacturer part number: 100-7725
  • Application/configuration: Late Model GM
  • Thread size: M12 x 1.50
  • Under-head length: 2.500 in
  • Knurl diameter: 0.509 in
  • Knurl length: 0.315 in
  • Nose length: 0.200 in

Selection Guidance

Thread pitch determines lug-nut compatibility, while knurl dimensions determine the press fit where a knurled stud is used. Under-head length includes more than the usable threaded section; an unthreaded nose and any spacer must be accounted for when checking engagement.

Calculate the total number of studs required for the job. A package count identifies individual studs and should not be interpreted as the number of wheels it services.

Installation Considerations

Measure the hub and compare the required stud dimensions before installation. Check clearance behind the hub and inside closed-end lug nuts. Use the installation method for the exact stud design, and confirm full seating without damaging the hub.
