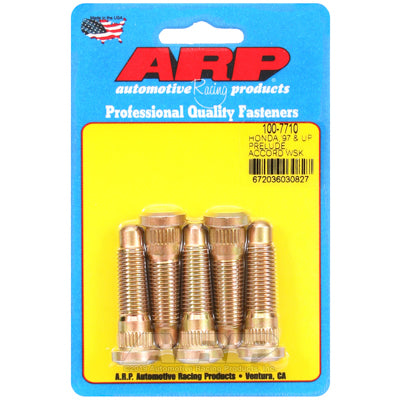

ARP Wheel Stud Kit (5-Pack) - Honda Applications | M12 x 1.50 Thread, 1.850 in Under-Head Length, 0.485 in Knurl Diameter

ARPSKU: ARP100-7710

Price:
$38.90

Description

The ARP 100-7710 wheel stud kit is listed for 1980-2000 Honda. Select wheel studs by their hub fit, thread specification and required engagement with the installed wheel and lug nut.

Technical Highlights

  • Manufacturer part number: 100-7710
  • Application/configuration: 1980-2000 Honda
  • Package quantity: 5 pieces
  • Thread size: M12 x 1.50
  • Under-head length: 1.850 in
  • Knurl diameter: 0.485 in
  • Knurl length: 0.275 in
  • Nose length: 0.350 in

Selection Guidance

Thread pitch determines lug-nut compatibility, while knurl dimensions determine the press fit where a knurled stud is used. Under-head length includes more than the usable threaded section; an unthreaded nose and any spacer must be accounted for when checking engagement.

Calculate the total number of studs required for the job. A package count identifies individual studs and should not be interpreted as the number of wheels it services.

Installation Considerations

Measure the hub and compare the required stud dimensions before installation. Check clearance behind the hub and inside closed-end lug nuts. Use the installation method for the exact stud design, and confirm full seating without damaging the hub.

Vehicle Fitment

Year Make Model Submodel
1997-1998,2002-2003 Acura CL Base
1997-1999,2001 Acura CL Premium
2001-2003 Acura CL Type-S
1990-1993,1997-2001 Acura Integra GS
1992-2001 Acura Integra GS-R
1990-2001 Acura Integra LS
1990-1998 Acura Integra RS
1995-1996 Acura Integra Special Edition
1997-1998,2000-2001 Acura Integra Type R
1999 Acura NSX Alex Zanardi Edition
1991-2001,2004-2005 Acura NSX Base
1995-2003 Acura NSX T
2002-2006 Acura RSX Base
2002-2006 Acura RSX Type-S
1995-2006 Acura TL Base
1995-1998 Acura TL Premium
2002-2003 Acura TL Type-S
1993 Honda Accord 10th Anniversary
1996 Honda Accord 25th Anniversary Edition
1988-2002 Honda Accord DX
1990-2002 Honda Accord EX
1988-2002 Honda Accord LX
1988-1989 Honda Accord LXi
1991,1993,1997,2000,2002 Honda Accord SE
1989 Honda Accord SEi
1996-1997,2001-2002 Honda Accord Value Package
1988-1991 Honda Civic Base
1992-2000 Honda Civic CX
1988-2005 Honda Civic DX
1990-2005 Honda Civic EX
2005 Honda Civic EX Special Edition
1998-2005 Honda Civic GX
1996-2005 Honda Civic HX
2003-2005 Honda Civic Hybrid
1988-2005 Honda Civic LX
2005 Honda Civic LX Special Edition
1988-1991 Honda Civic RT 4WD
1989-1995,1999-2000,2002-2005 Honda Civic Si
1999,2004-2005 Honda Civic Value Package
1992-1995 Honda Civic VX
1988-1989 Honda Civic Wagovan
1993-1997 Honda Civic del Sol S
1993-1997 Honda Civic del Sol Si
1994-1997 Honda Civic del Sol VTEC
1989-1991 Honda CRX Base
1988 Honda CRX DX
1988-1991 Honda CRX HF
1988-1991 Honda CRX Si
2007 Honda Fit Base
2007 Honda Fit Sport
2000-2006 Honda Insight Base
1988-1990 Honda Prelude 2.0 S
1988-1991 Honda Prelude 2.0 Si
1988-1989 Honda Prelude 2.0 Si 4WS
1997-2001 Honda Prelude Base
1992-1996 Honda Prelude S
1995 Honda Prelude SE
1990-1996 Honda Prelude Si
1990-1994 Honda Prelude Si 4WS
1990-1991 Honda Prelude Si ALB
1997-2001 Honda Prelude Type SH
1993-1996 Honda Prelude VTEC
