Description
Note: All APG Performance Brake Kits require a 6-8 week build time after an order has been placed.
Upon placing an order, we will contact you for the following specifications you can select from:
- Rotor Hat Color (Standard Finish is Black)
- Logo Engraving Color
- Brake Pad Option (Standard Option is a Sport Pad option - available to be packaged with Street, Sport, Track, or Race Pads)
All APG Big Brake kits come standard with forged calipers, 2-piece rotors (standard), brake pads, and steel braided lines with a custom colorway of your choice.
Caliper Specs
Forged 6061-T6 aerospace grade alloy 2-piece calipers
Radial mount design for less flex
Pistons 6061-T6 alloy with anti-corrosion coating
Dual seals with high temperature resistant oil ring and dust scrappers
Stainless steel bleed screw
Carbon steel caliper adapter for direct bolt-on installation guaranteed
Teflon and stainless steel brake lines DOT/ADR approved with banjo bolt
CNC machined logo
Anti-corrosion coating or custom color finish: Anodized + Gloss Paint

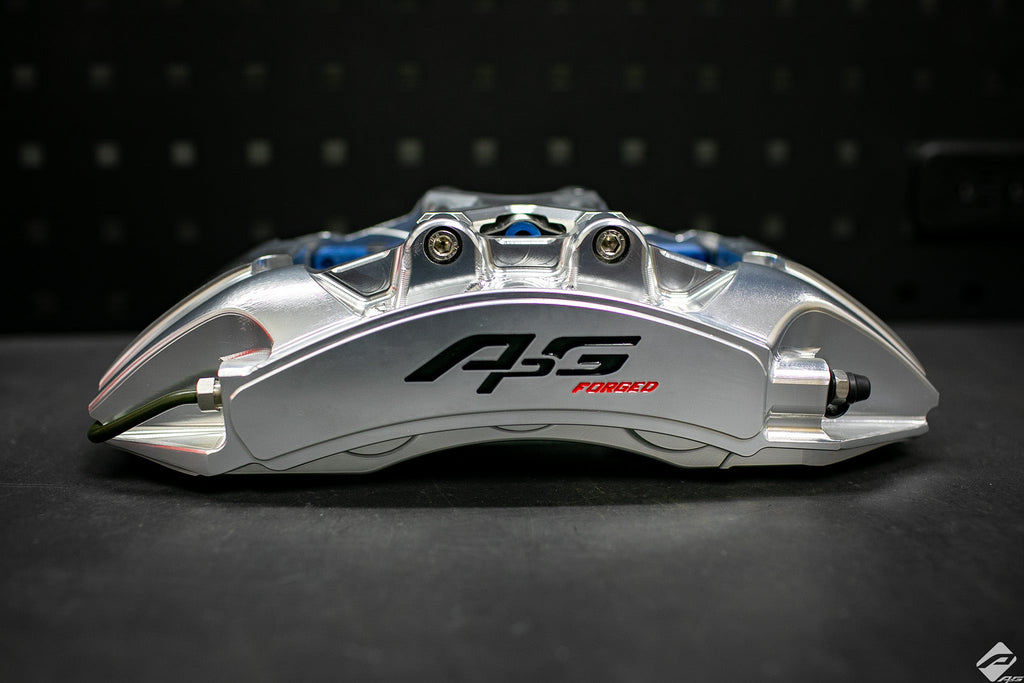

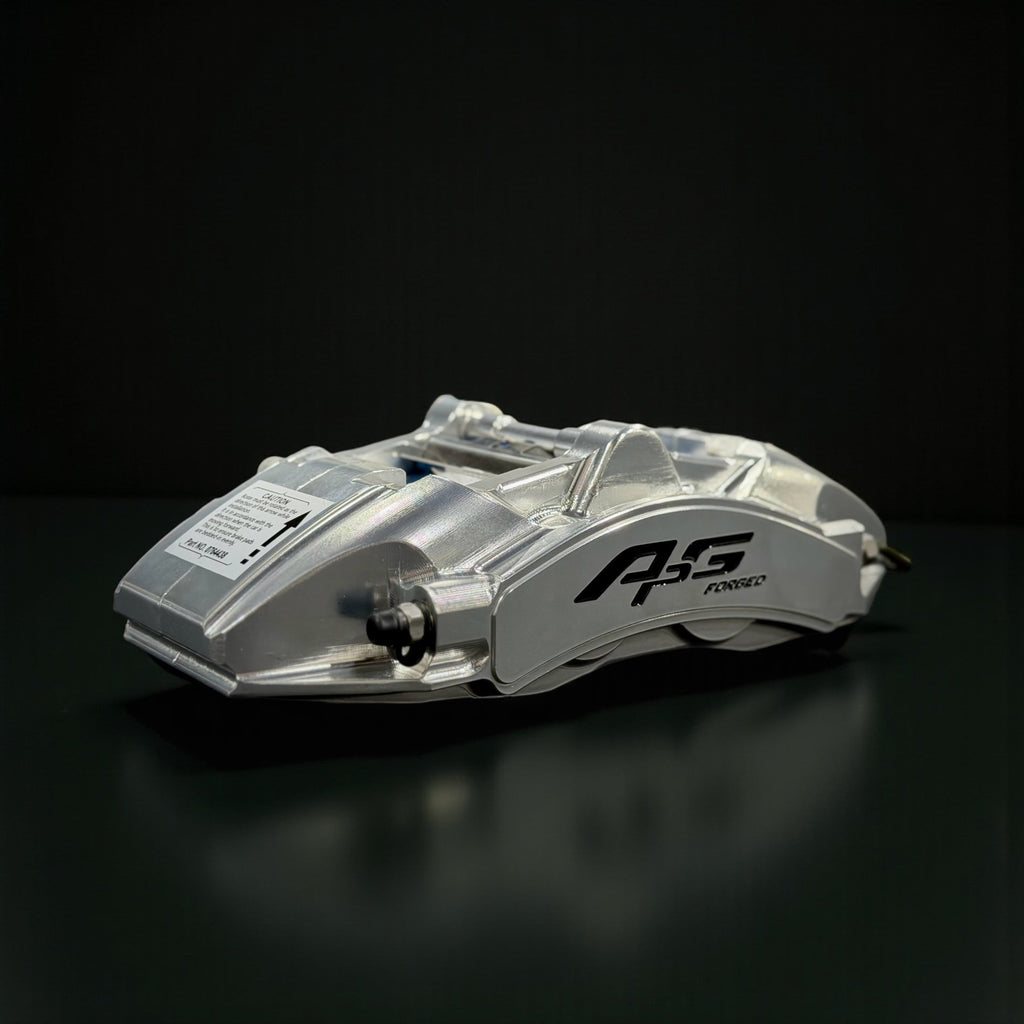

APG forged 6061-T6 caliper — radial mount performance brake caliper
Finish Options
Anodized
Anodizing is an advanced electrolytic process that strengthens the natural oxide layer of aluminum. APG employs a meticulous 2-3 layer anodizing procedure, delivering superior resistance against wear and corrosion while creating a rich, refined surface finish.

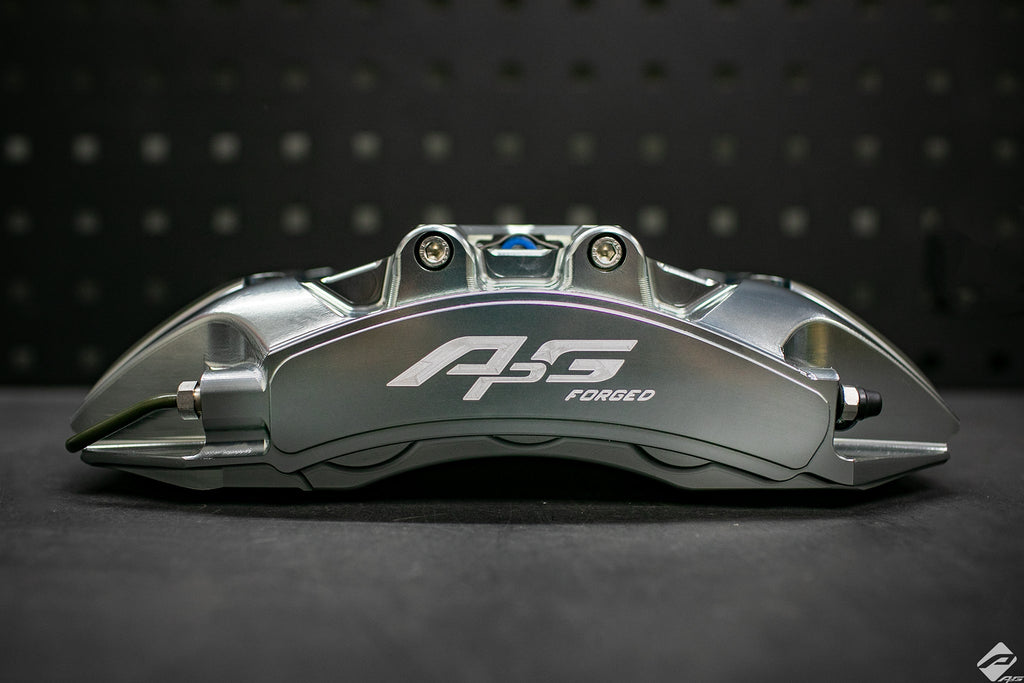

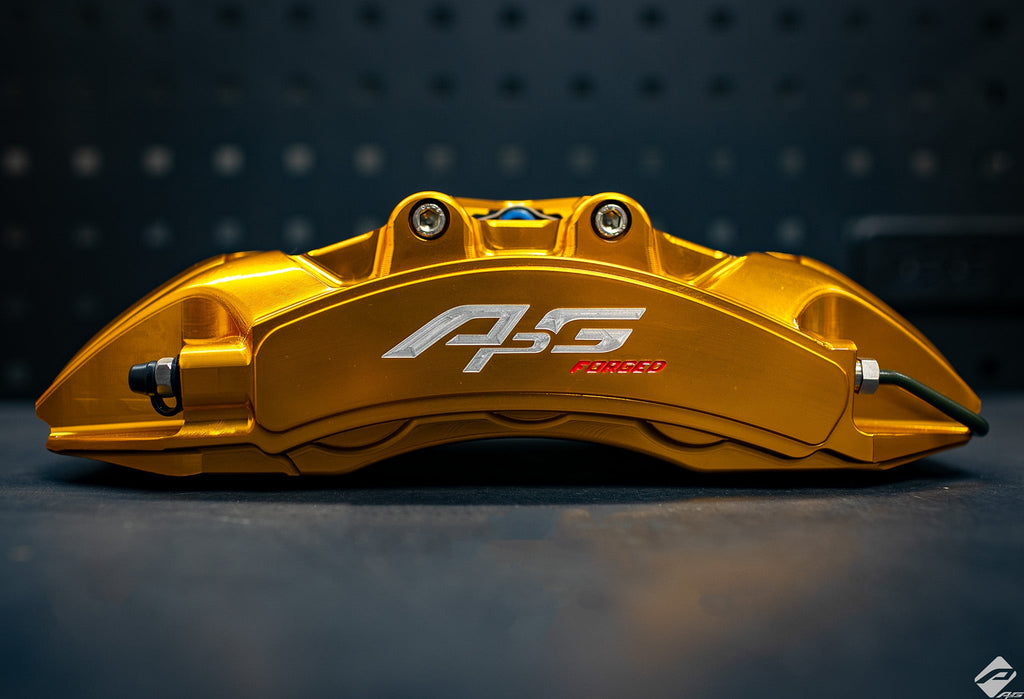

APG anodized brake caliper finish — corrosion-resistant performance coating
Painted
High-quality custom paint color options available.
Rotor Specs
2-piece rotors with 6061-T6 aerospace grade alloy hat
Fully balanced from the factory
Rotor ring in FC25 cast iron with anti corrosion coating
Drilled / Slotted / Drilled and Slotted rotor ring available at no extra cost

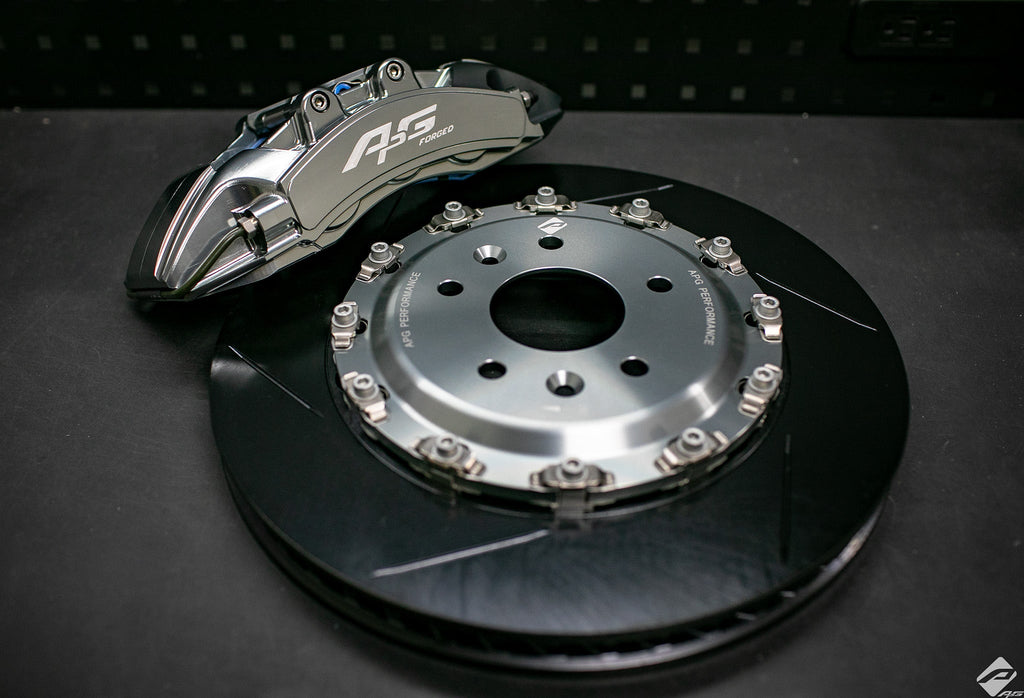

Full-floating option features precision floating hardware with anti-rattle, fully rebuildable design

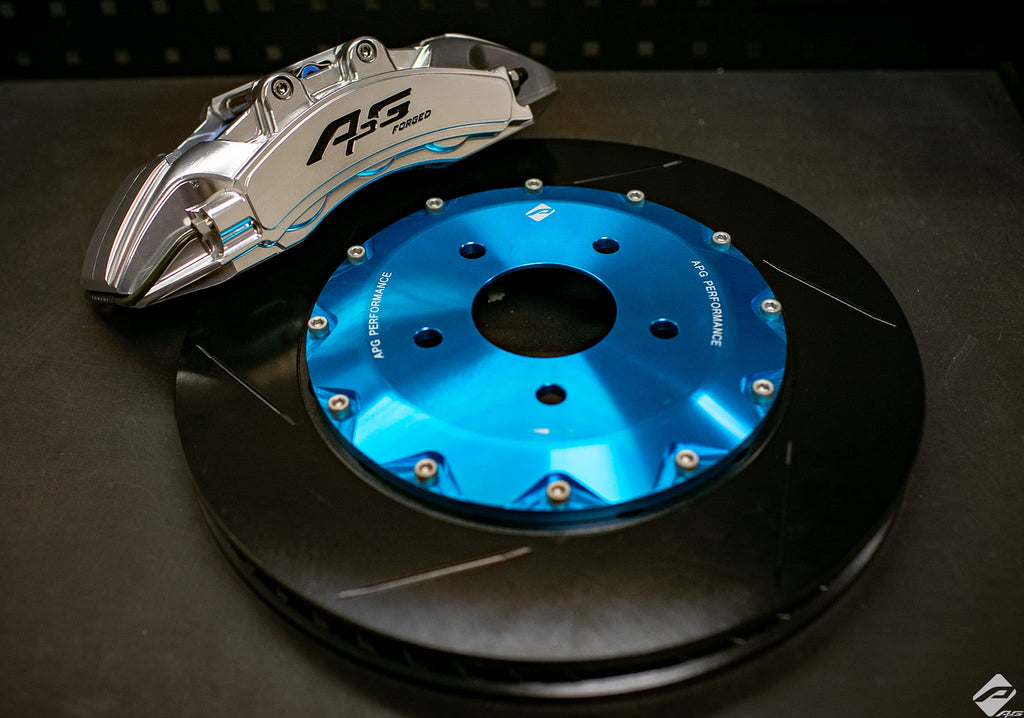

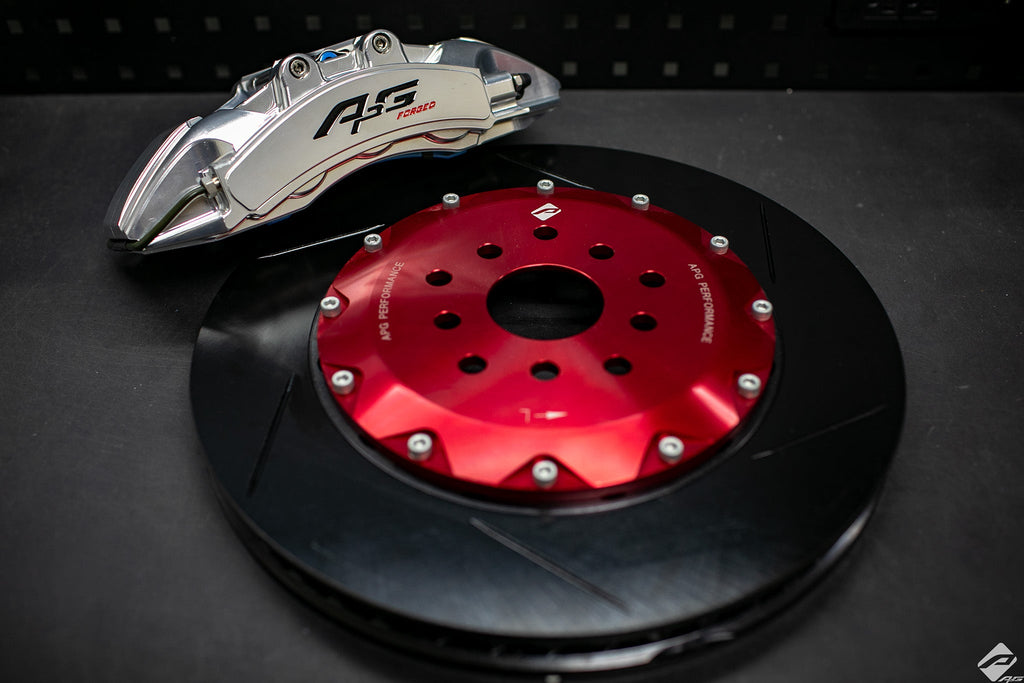

APG 2-piece rotor with 6061-T6 alloy hat — performance big brake rotor
Brake Pads
We have four compounds of brake pads to give you high performance braking, depending on your driving conditions. You can also use other brake pad brands with our calipers (Brembo, Ferodo, Hawk, Mintex, PAGID, Wilwood and more).
APG performance brake pad compounds — street, sport, race options
Street Pads — Grey
For street use. No noise, very little dust, good braking power at low and high temperatures.
0~500°C optimal · 0.38~0.45 friction
Sport Pads — Blue
For street/track use. Low noise, little dust, high braking power at low and high temperatures.
0~550°C optimal · 0.40~0.50 friction
Race Pads — Red
For race use only. Maximum braking power, bite and friction. Not for everyday street use.
100~700°C optimal · 0.42~0.58 friction
Pro Race Pads — Yellow
For extreme race use. Highest temperature range with very high coefficient of friction.
100~800°C optimal · 0.58~0.68 friction
APG brake pads for big brake kits — multiple compound options
Warranty
APG Performance offer limited warranty against any defects in materials and workmanship.
Caliper body and Brackets: 2 years (excluding color of anodizing and painting)
Rotors: 3 months or 10,000 kilometers, whichever comes first
Brake pads: no warranty since it’s consumable
Warranty applies to street use and under normal operating conditions only
