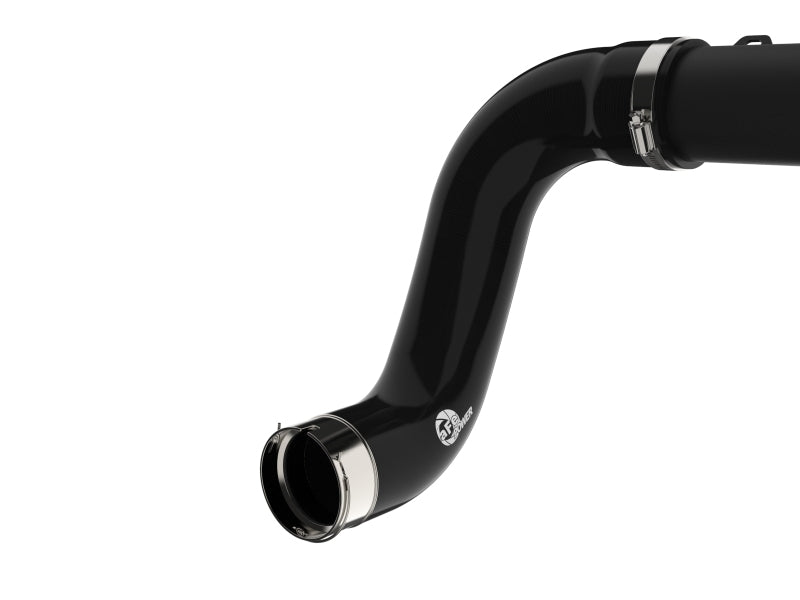

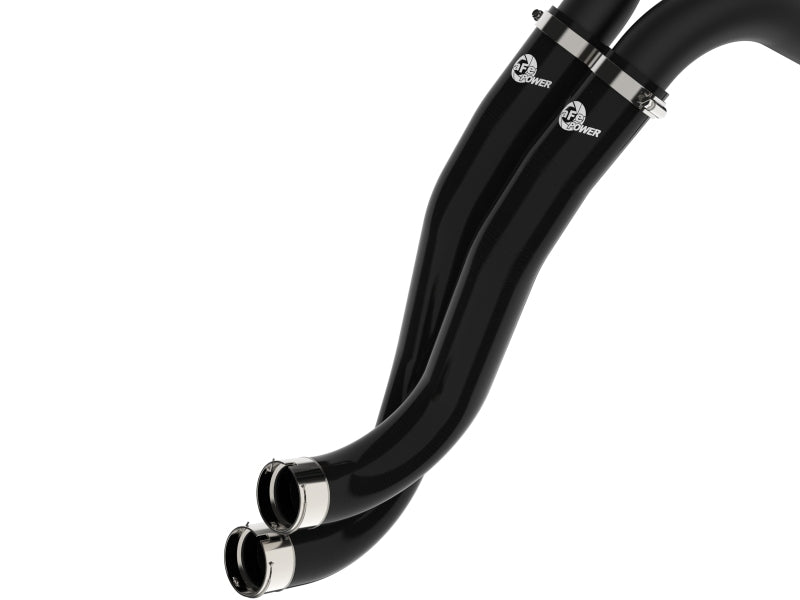

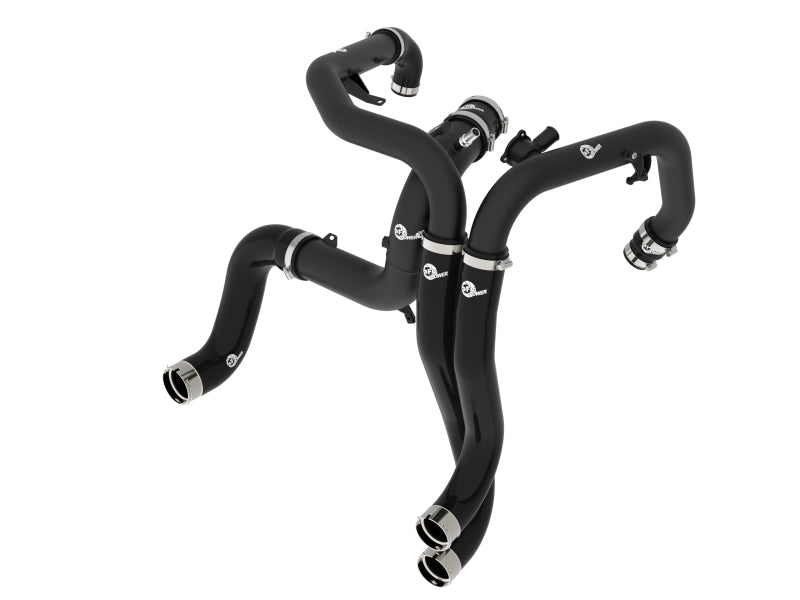

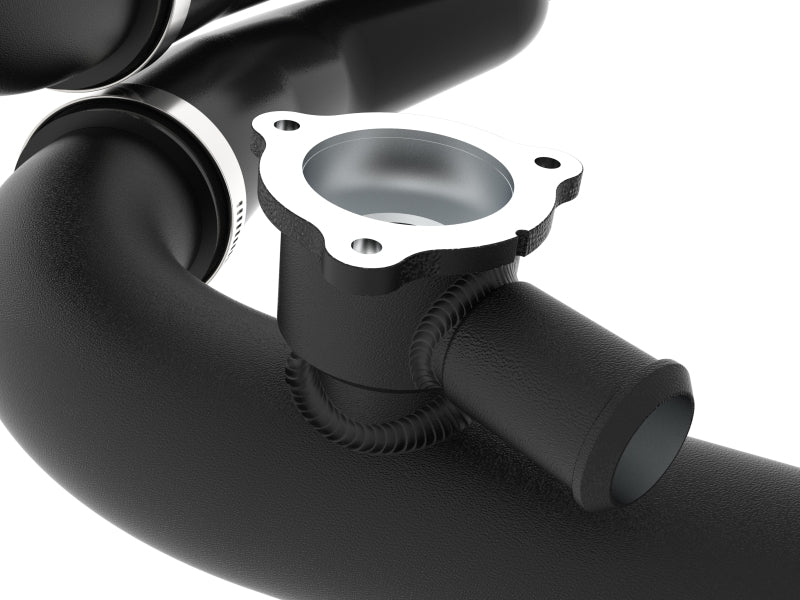

aFe BladeRunner Aluminum Hot and Cold Charge Pipe Kit (Black) – 22–24 Ford Bronco Raptor 3.0L V6

aFe BladeRunner Aluminum Hot and Cold Charge Pipe Kit (Black). Listed application/configuration: 22–24 Ford Bronco Raptor 3.0L V6.

Technical details

• Hot- and cold-side piping configuration, as identified by this part number.
• Aluminum construction.
• Mandrel-bent tubing provides smooth transitions through the bends.

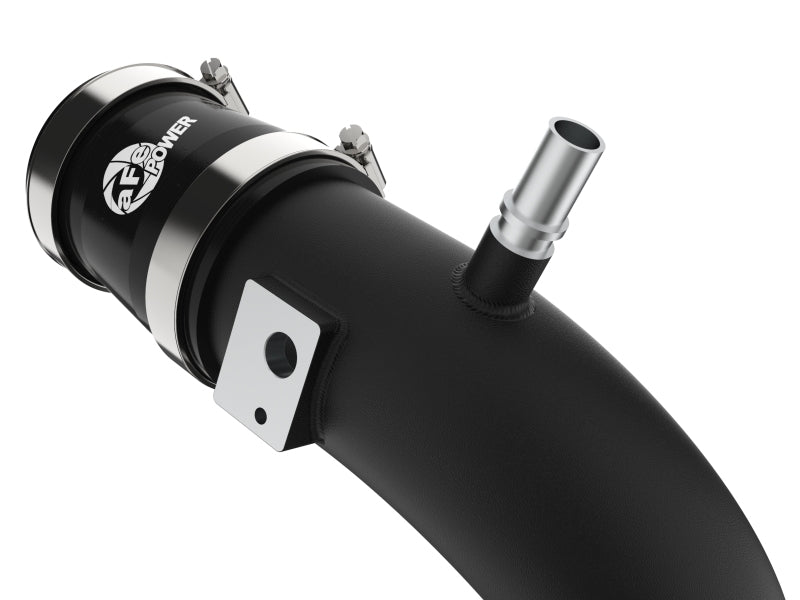

• Five-ply reinforced silicone couplings are specified for the connections.
• SmartSeal clamps are specified for the charge-pipe connections.

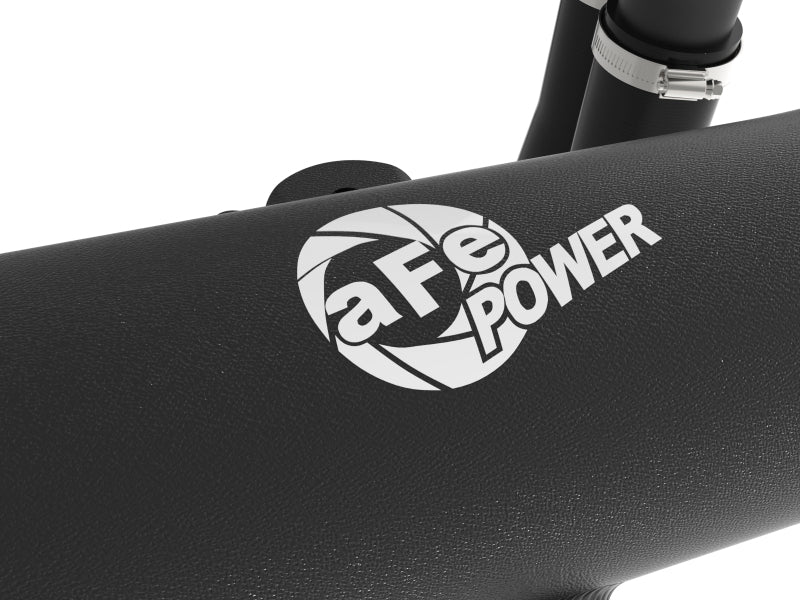

• Wrinkle/textured-black coating provides the specified exterior finish.

How to choose this component

Charge piping forms part of the pressurized path between the turbocharger, intercooler and engine. Pipe routing, coupling size and connection type must match the application; a pipe upgrade does not replace the intercooler core.

Installation and supplied components

• The product information identifies connection hardware/couplings for this assembly. Use the part-specific packing list to confirm individual pieces before installation.

Manufacturer part number: 46-20754-B.

Vehicle fitment

Match the vehicle, engine, trim and any application restrictions before ordering. The supplied catalog applications are listed below.
