Description

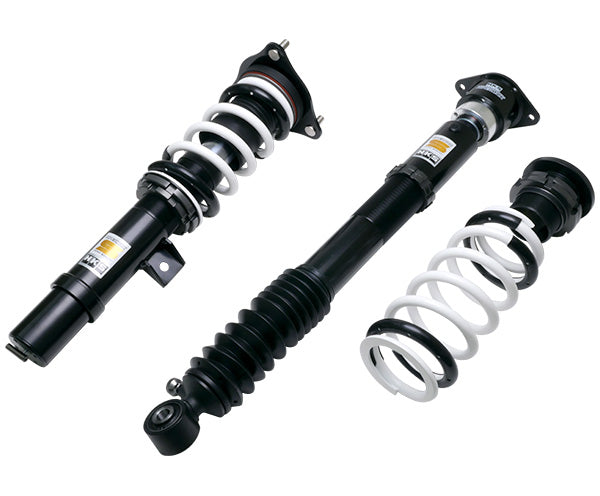

HIPERMAX S, which has evolved damping force characteristics, durability, and aesthetics, offers the best "Driving Comfort" in the history of HKS suspension.
- The kit includes an upper plate positioning bolt for camber adjustment on the front side. It is fixed at the standard position of the stock, and the camber adjustment can be possible in plus or minus 0.5 deg.
- The product is set to a stable suspension; the roll speed has been optimized based on the setting that moves flexibly while increasing the roll rigidity with the inverted front suspension and increased spring rate.
- The setting is the best match for the powerful engine and solid body. Please enjoy the ride comfort that HIPERMAX produces.
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | × | 〇 |
| Upper mount | Rubber | Rubber |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Impossible | Impossible |
| Damping force adjustment with wire | - | - |
| Helper spring (Spring rate N/mm) |
- | - |
Kit information
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 49 ( 5.0 ) | 39 ( 4.0 ) |
| Free height (mm) | 200 | 220 |
| Spring type | Straight Barrel type | Straight Barrel type |
| Recommended range to change spring rate N/mm(kgf/mm) | - | - |
Specification of damper
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 284 / 270 | 299 / 216 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 48 / 60 | 63 / 71 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
| F | R | |||||||
|---|---|---|---|---|---|---|---|---|
| Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
| Length of case (mm) |
230 | ← | 230 | 230 | 323 | ← | 354 | 305 |
| Spring Set length(mm) |
190 | ← | 190 | 203 | - | - | - | - |
| Length to ride hight adjuster (mm) |
20 | ← | 20 | 7 | 43 | ← | 66 | 29 |
| Lever ratio | 1.03 | 1.25(spg) , 0.93(dmp) | ||||||
