Description
NOTE: Depending on the 17-inch wheel you select, it may not be possible to install.

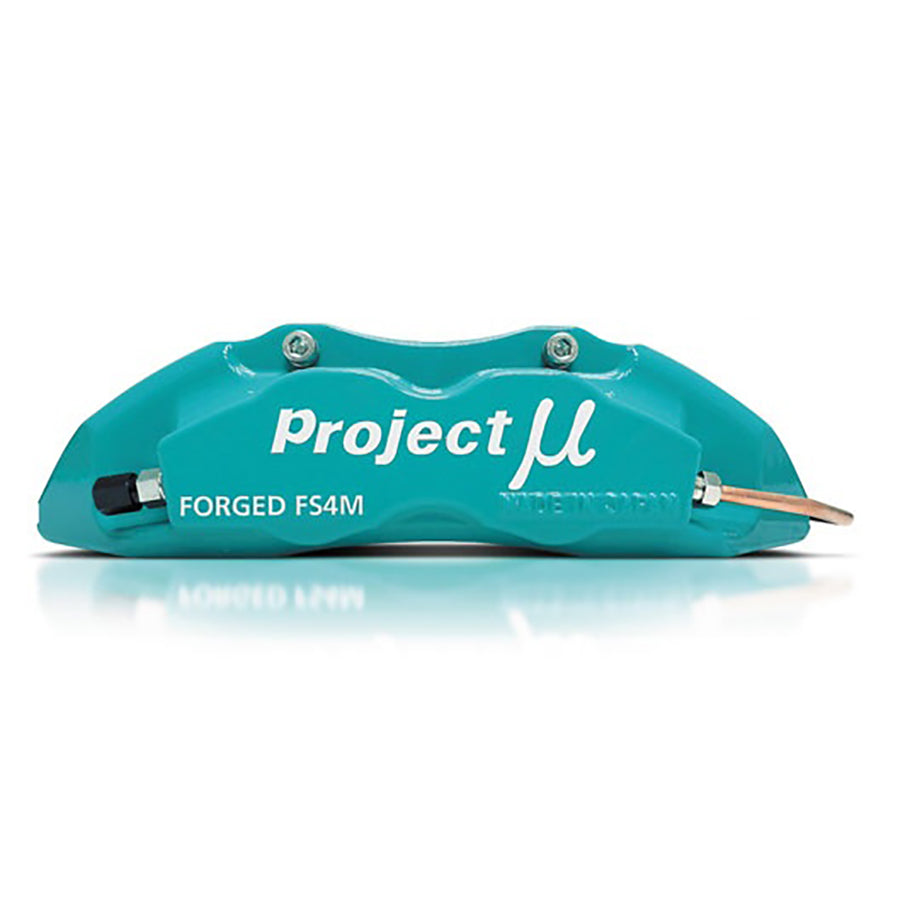

Project Mu FS4M Forged Caliper 4 Piston
By adopting a rotor around 320mm, this model can also be fitted with 17-inch wheels. In addition, by adopting a 1pc rotor, they have achieved a low price as it is MADE IN JAPAN. Project Mu has newly set up a model that uses 2pcs rotors.
Overall Length: 275.0mm / Overall Width: 144.5mm / Overall Height: 71.6mm
Excluding the protrusion at the brake line attachment part.
- Material / Manufacturing Method: Aluminum Alloy / Forging
- Surface Treatment: Hard Alumite + Powder Coat
- Piston Diameter: 38mm
- Rotor Dimensions: 324x30mm
- Number of Pads: 2 Pads / 1 Caliper
The standard pad included is (NS-C).
During installation, it is necessary to process the genuine disc back plate.
Included In The Kit:
- Caliper Body
- Caliper Bracket
- Brake Pads
- Brake Rotor
- Teflon Brake Line
- Complete Set of Bolts
Seal Structure To Shut Out Dust:
Oil seals are important parts related to safety. Therefore, a dust seal is installed in front of the oil seal to prevent dust and dirt from entering, which can cause damage.
